SW-COMPACT-4 Weigh Pad Kit
AT A GLANCE
Weigh vans and light trucks up to 7.5t, one pad under each wheel.
7.5t
Maximum vehicle weight, 4 wheels
2t
Rated capacity per pad, 8t combined
Printed
Ticket on the spot from the display
1 year
Calibration included with every kit
Model: SW-COMPACT-4
4 pads – 2t per pad – for vehicles up to 7.5t

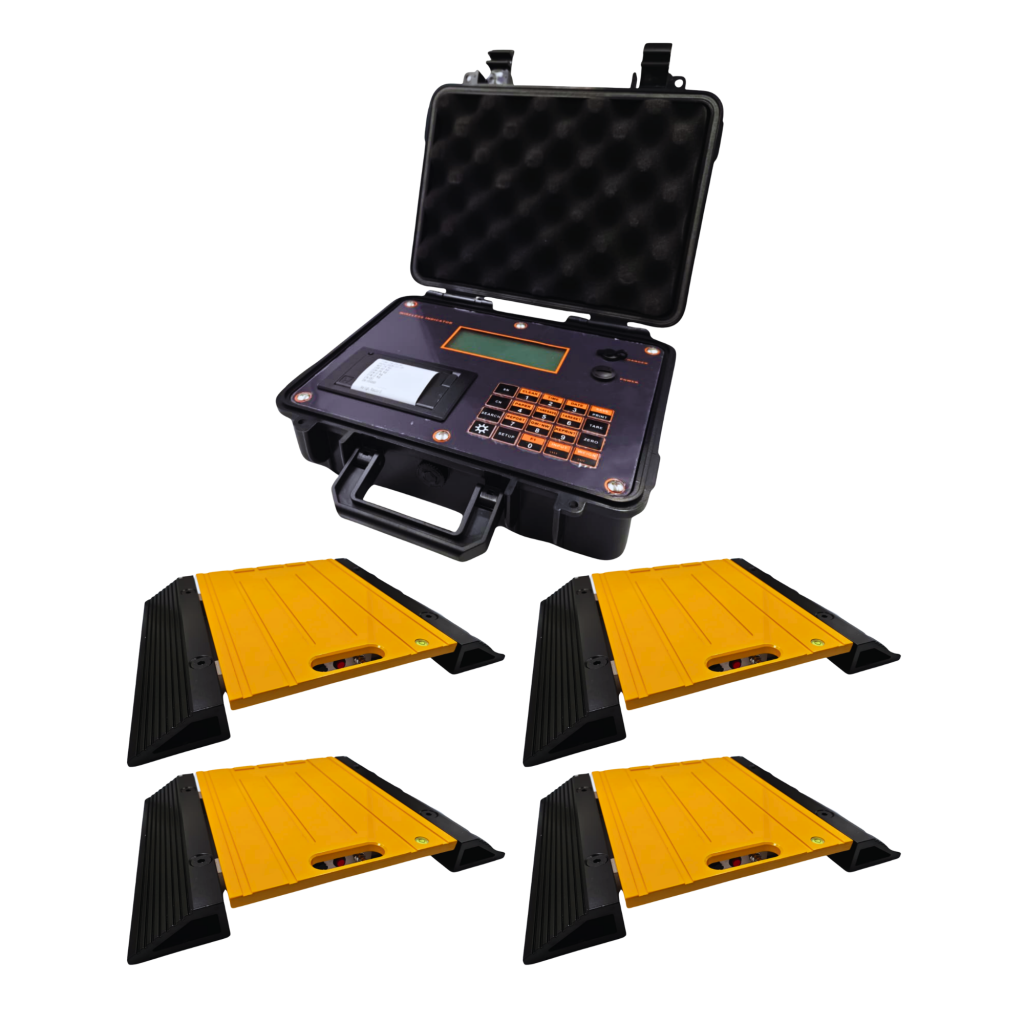

Includes the wireless display with built-in printer.
Ticket on the spot
Spirit level in every pad
IN THE BOX
Everything you need to start weighing.

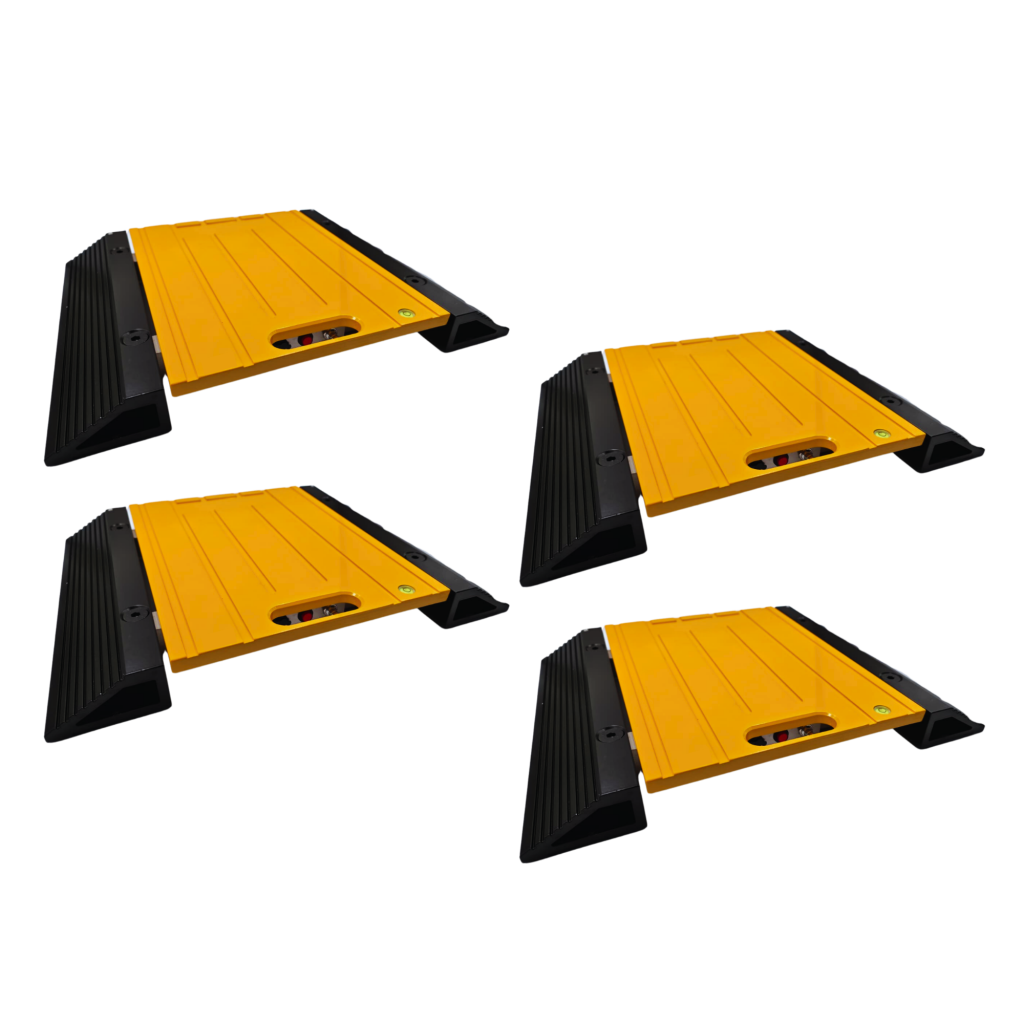

4 x weigh pads
300 x 400mm, rated at 2t each.
1 x wireless display
In a carry case, with a built-in printer.
4 + 1 chargers
One per pad, one for the display.
4 x antennas
One per pad.
1 year calibration
Included with every kit.
PERFECT FOR
Vans and light trucks up to 7.5t.
- Parcel and delivery van fleets
- Trade and utility van fleets
- Light trucks up to 7.5t
- Motorhome, caravan and horsebox specialists
- Vehicle converters and bodybuilders
- Commercial vehicle workshops
KEY FEATURES
Covers 3.5t and 7.5t
Four 2t pads give an 8t combined capacity, enough for vans and light trucks up to 7.5t.
Printed ticket on site
A wireless display in a carry case reads every pad and prints a ticket from its built-in thermal printer.
Made for site work
IP65 rated against dust and water jets. Safe overload up to 120% of rated capacity, 2.4t per pad.
The SW-COMPACT covers vehicles up to 7.5t.
- Weigh on a firm, level surface
- Keep the whole tyre contact patch on the pad
- Keep each wheel load within 2t
- Vehicle stationary, one pad under each wheel
