APP BASED STATIC WEIGH PADS

SW-MINI-4 Weigh Pad Kit

Bluetooth weigh pads for vans and light commercial vehicles up to 3.5t. Four compact pads, read on an Android phone. No display or printer to carry.
REQUEST A QUOTE
VIEW THE KIT

AT A GLANCE

Weigh any van up to 3.5t, one pad under each wheel.

3.5t

Maximum vehicle weight, 4 wheels

1.5t

Rated capacity per pad

IP65

Protected against dust and water jets

1 year

Calibration included with every kit

THE SW-MINI KIT

Model: SW-MINI-4

APP ONLY

4 pads – 1.5t per pad – for vehicles up to 3.5t

Part number
SW-P20204W
Pads per kit
4
Rated capacity per pad
1.5t
Combined rated capacity
6t
Maximum vehicle
3.5t, 4 wheels
Safe overload
120% (1.8t per pad)
Pad size
200 x 200mm
Pad weight
2kg per pad
Method
Static, one pad per wheel
Connection
Bluetooth to Android app
Indicator
Android app, no display
Printer
None
Ingress protection
IP65
Calibration
1 year included
PRICE
£1,210.08
Add to cart
REQUEST A QUOTE

App only: no handheld indicator or printer included.

2kg per pad

Four 200 x 200mm pads that one person can carry and position in a single trip.

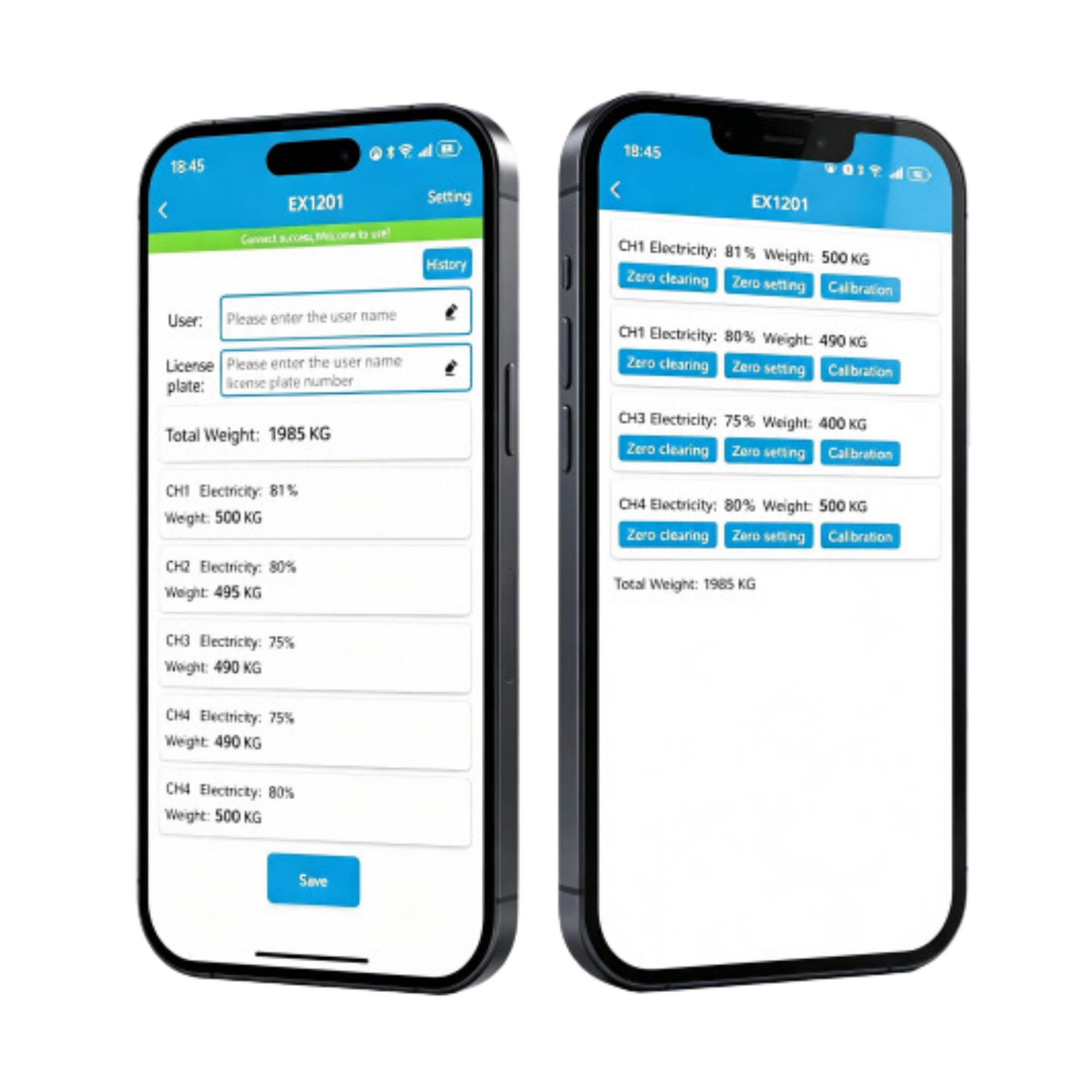

Your phone is the indicator

Each pad talks to the Android app over Bluetooth. No cables between pads, no display to charge.

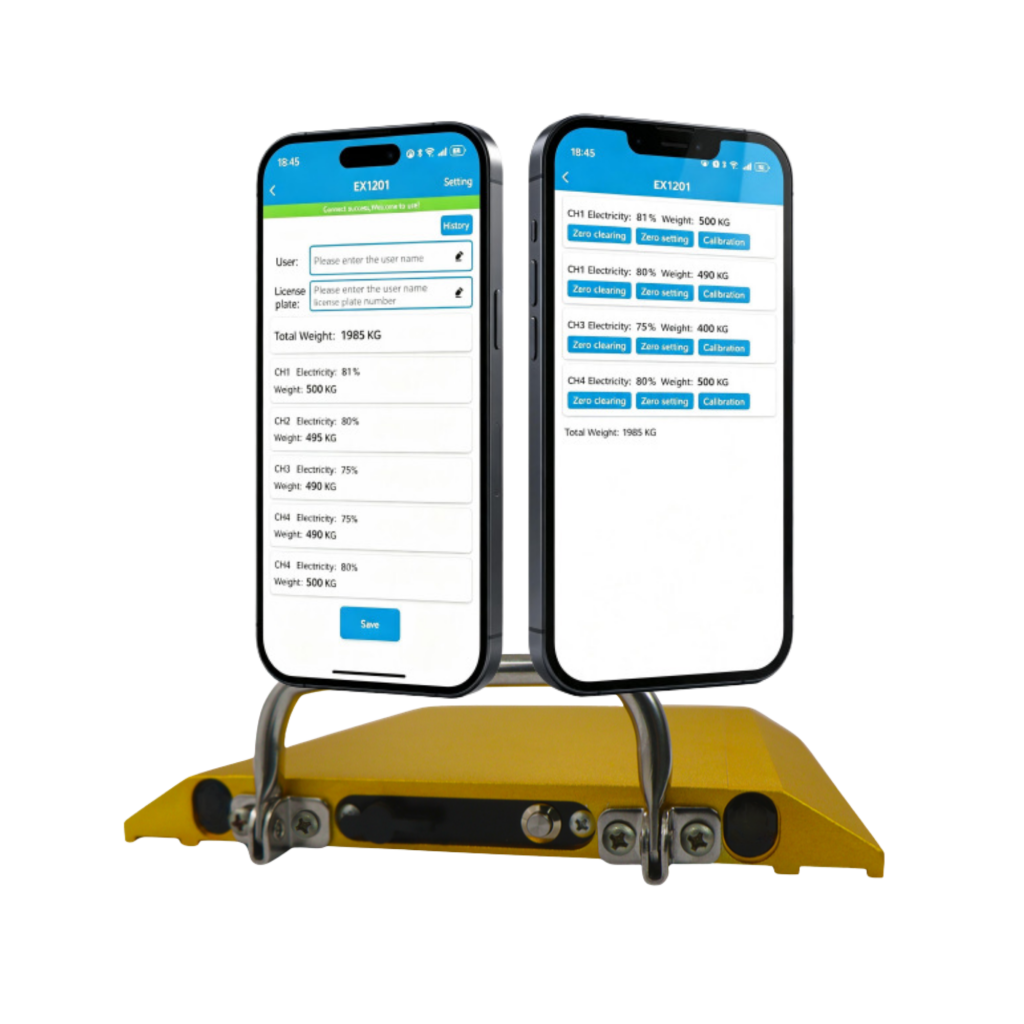

SW-MINI-4 weigh pad with the SmartWeigh Android app
Underneath of SW-MINI-4 Weigh Pad
SmartWeigh Android App for Weigh Pads
SW-MINI-4 Weigh Pad With Dimensions
DOWNLOAD DATASHEET

IN THE BOX

Everything you need to start weighing.

Every kit ships ready to use. Charge the pads, fit the antennas, download the app and weigh.

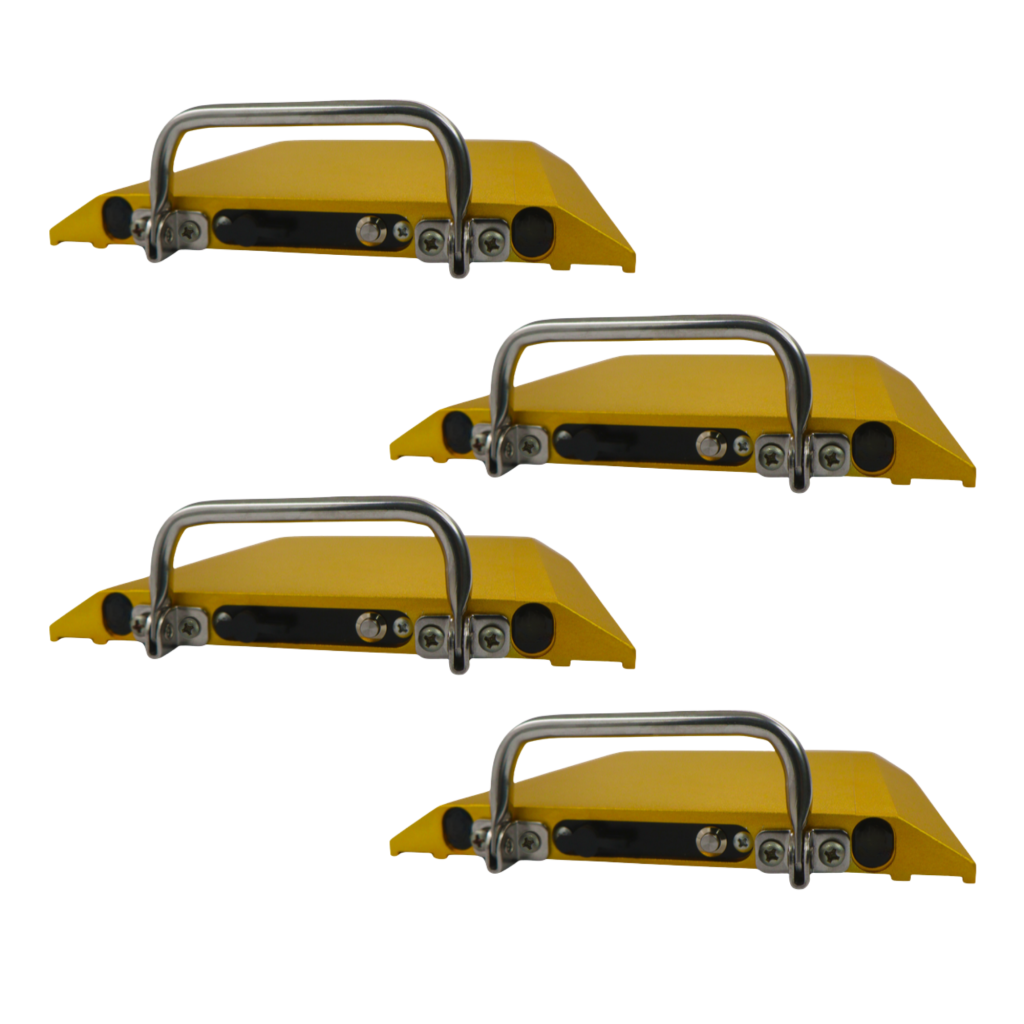

Four SW-MINI-4 app weigh pads

4 x weigh pads

200 x 200mm, rated at 1.5t each.

SmartWeigh Android App for Weigh Pads

Android app

Acts as the indicator. Download from Google Play.

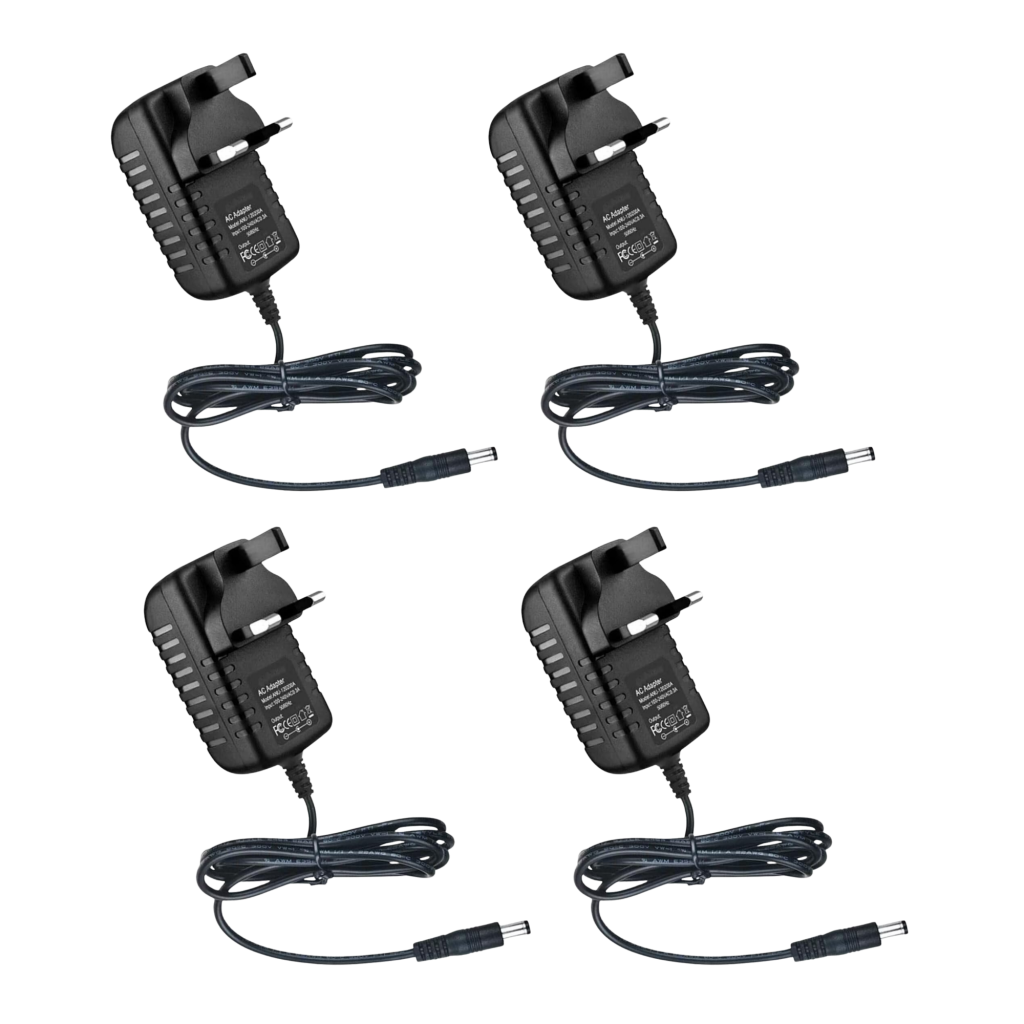

Wireless Weigh Pad Chargers for 4 Pad Kits

4 x chargers

One per pad.

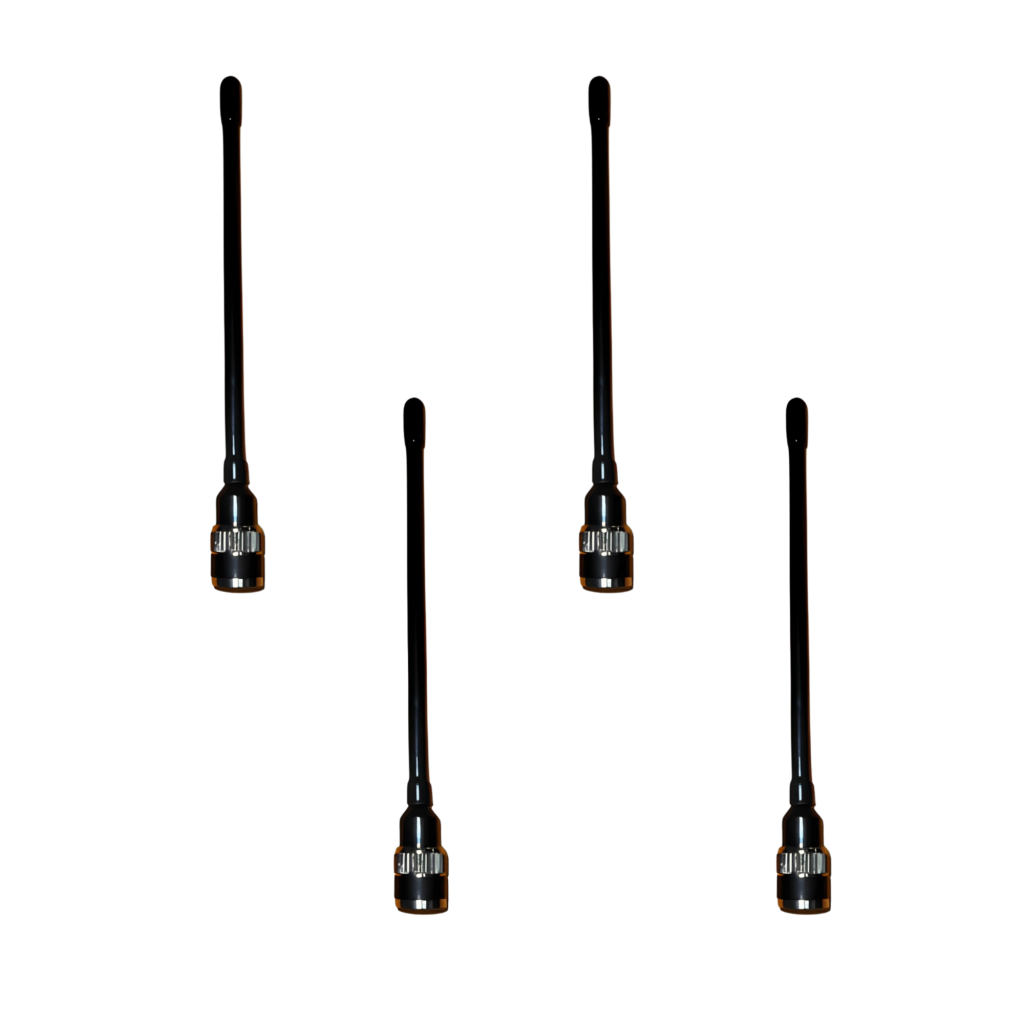

Wireless Weigh Pad Antennas for 4 Pad Kits

4 x antennas

One per pad.

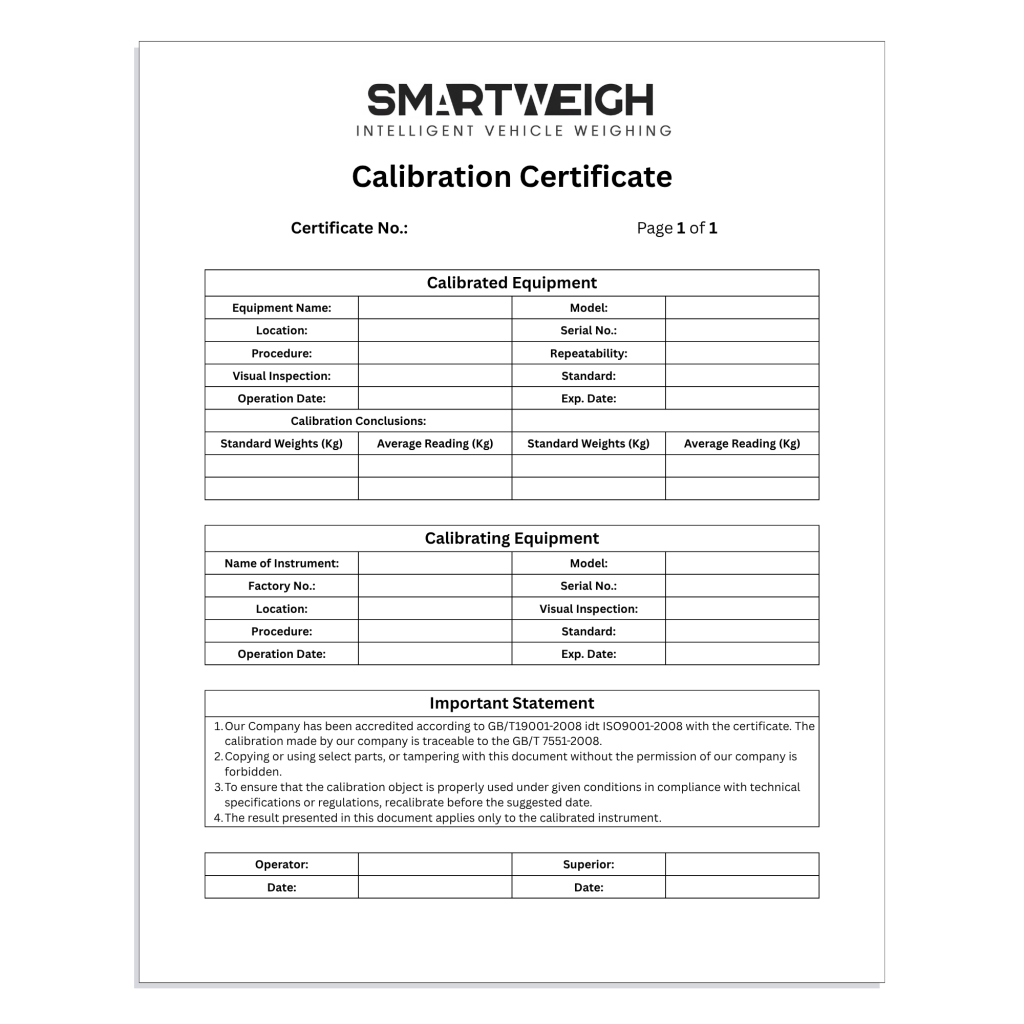

Wireless Weigh Pad Calibration Certificate Example

1 year calibration

Included with every kit.

PERFECT FOR

Vans and light commercials up to 3.5t.

  • Parcel and delivery van fleets
  • Trade and utility vans
  • Fleet managers doing depot spot checks
  • Camper vans and motorhomes up to 3.5t
  • Pickups and 4x4s
  • Light horseboxes up to 3.5t
SW-MINI-4 weigh pad with the SmartWeigh Android app

KEY FEATURES

Reads on your phone

Live weight from each pad and the gross total in the Android app. No separate display to carry or charge.

Light enough to carry

Four 200 x 200mm pads at 2kg each. Put one under each wheel and you are ready to weigh.

Made for site work

IP65 rated against dust and water jets. Safe overload up to 120% of rated capacity, 1.8t per pad.

CHOOSING YOUR KIT

The SW-MINI covers vans up to 3.5t.

Vehicle weight
Kit
Up to 3.5t, 4 wheels
SW-MINI-4 or SW-COMPACT-4
3.5t to 7.5t, 4 wheels
SW-COMPACT-4
Over 7.5t, 2 axles
SW-STANDARD-4 or SW-LARGE-4
Over 7.5t, 3 axles
SW-STANDARD-6
Over 7.5t, 4 axles
SW-STANDARD-8, SW-LARGE-8 or SW-PRO-8
More than 10t on one wheel
SW-HEAVY-4
Heavier vehicle or not sure? Call 01603 485153 or send an enquiry below and we will point you to the right kit.
FOR AN ACCURATE READING
  • Weigh on a firm, level surface
  • Keep the whole tyre contact patch on the pad
  • Keep each wheel load within 1.5t
  • Vehicle stationary, one pad under each wheel
CALL 01603 485153
READY TO GO?

Contact our weigh pad specialist

Tell us which vehicles you weigh and where. We will confirm the right kit and price, and get back to you the same working day.

Get a price

The more you tell us, the more useful our reply will be.
By sending this enquiry you agree to our privacy policy. We will only use your details to reply to your enquiry.
HOW IT GETS TO YOU

Shipped ready to weigh.

1

Send an enquiry

Tell us the vehicles you weigh and where. We will confirm the SW-MINI fits, or point you to the kit that does.
2

Packed and shipped

We ship the kit direct with pads, chargers and antennas. No engineer visit and nothing to fit to the vehicle.
3

Calibrated for a year

Every kit includes a 1 year calibration. After that, we offer calibration services to keep your pads in date.
