STATIC WEIGH PADS WITH DISPLAY

SW-LARGE-8 Weigh Pad Kit

Name: SW-LARGE-8 Weigh Pad Kit
Brand: SmartWeigh
SKU: SW-P45708W
Price: 4813.72 GBP
Availability: InStock

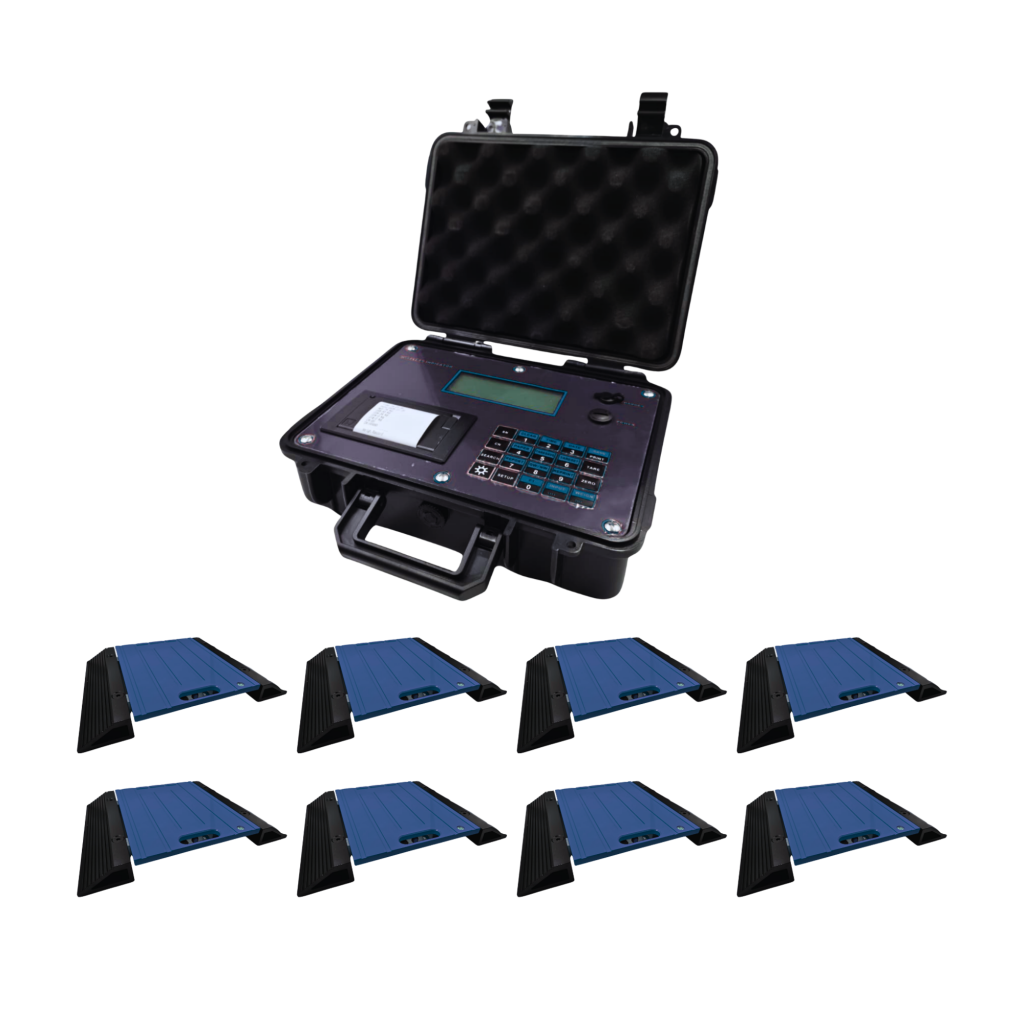

Eight 10t pads on a larger 450 x 700mm platform, with a wireless display and built-in printer. Weigh four axles in one go on wide tyres.

AT A GLANCE

Weigh four axles on wide tyres, one pad under each wheel.

450 x 700

Larger pad for wide tyres, in mm

10t

Rated capacity per pad, 80t combined

Printed

Ticket on the spot from the display

1 year

Calibration included with every kit

THE SW-LARGE-8 KIT

Model: SW-LARGE-8

8 PAD SET

8 pads – 10t per pad – 450 x 700mm for wide tyres

Part number

SW-P45708W

Pads per kit

Rated capacity per pad

10t

Combined rated capacity

80t

Vehicle

Four axles, 8 wheels

Safe overload

120% (12t per pad)

Pad size

450 x 700mm

Pad weight

40kg per pad

Level check

Spirit level in each pad

Method

Static, one pad per wheel

Connection

Wireless, pads to display

Indicator

Wireless display in carry case

Printer

Built-in thermal

Ingress protection

IP65

Calibration

1 year included

PRICE

£4,813.72

Includes the wireless display with built-in printer. Also available as SW-LARGE-4 for two-axle vehicles.

Room for wide tyres

Eight 450 x 700mm pads take wide tyres on all four axles at once. Longer combinations are weighed in stages, with a printed ticket for each.

Spirit level in every pad

A level set into each pad surface shows whether the ground is flat before you weigh.

IN THE BOX

Everything you need to start weighing.

Every kit ships ready to use. Charge the pads and the display, fit the antennas and weigh.

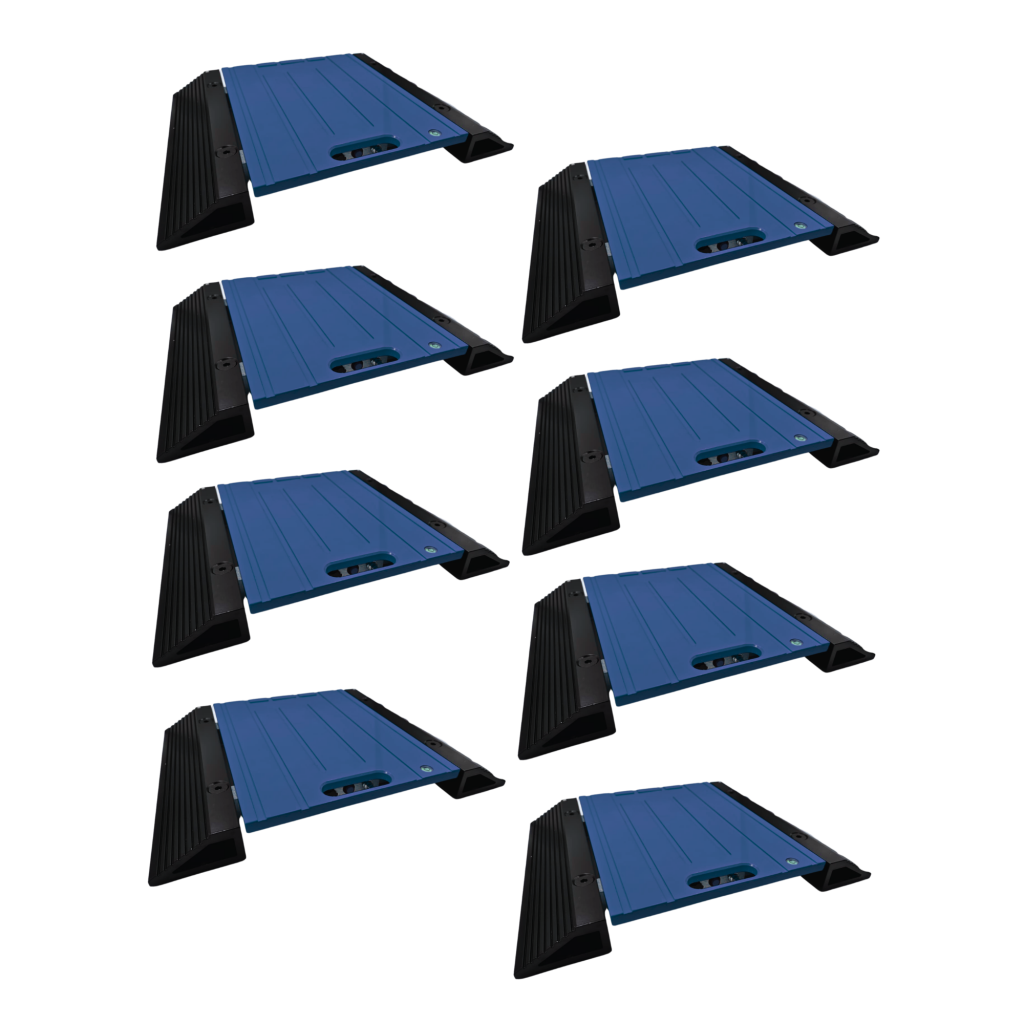

8 x weigh pads

450 x 700mm, rated at 10t each.

1 x wireless display

In a carry case, with a built-in printer.

8 + 1 chargers

One per pad, one for the display.

8 x antennas

One per pad.

1 year calibration

Included with every kit.

PERFECT FOR

Four axles on wide tyres.

Eight-wheel tippers on wide tyres
Tractor units and trailers
Bulk and fuel tanker operators
Quarries and aggregates
Plant hire and construction
Commercial vehicle workshops

KEY FEATURES

Larger platform

Eight 10t pads at 450 x 700mm, 80t combined, for four axles on tyres too wide for a standard pad.

Printed ticket on site

A wireless display in a carry case reads every pad and prints a ticket from its built-in thermal printer.

Made for site work

IP65 rated against dust and water jets. Safe overload up to 120% of rated capacity, 12t per pad.

CHOOSING YOUR KIT

The SW-LARGE-8 weighs four axles on wide tyres.

Vehicle weight

Kit

Up to 3.5t, 4 wheels

SW-MINI-4 or SW-COMPACT-4

3.5t to 7.5t, 4 wheels

SW-COMPACT-4

Over 7.5t, 2 axles

SW-STANDARD-4 or SW-LARGE-4

Over 7.5t, 3 axles

SW-STANDARD-6

Over 7.5t, 4 axles

SW-STANDARD-8, SW-LARGE-8 or SW-PRO-8

More than 10t on one wheel

SW-HEAVY-4

Heavier vehicle or not sure? Call 01603 485153 or send an enquiry below and we will point you to the right kit.

FOR AN ACCURATE READING

READY TO GO?

Contact our weigh pad specialist

Tell us which vehicles you weigh and where. We will confirm the right kit and price, and get back to you the same working day.

Get a price

The more you tell us, the more useful our reply will be.

Your name

Company (optional)

Phone

Heaviest vehicle you weigh

Number of axles

Postcode

How many kits? (optional)

Timeframe (optional)

Anything else we should know? (optional)

By sending this enquiry you agree to our privacy policy. We will only use your details to reply to your enquiry.

HOW IT GETS TO YOU

Shipped ready to weigh.

Send an enquiry

Tell us the vehicles you weigh and their tyre size. We will confirm the SW-LARGE-8 fits, or point you to the SW-STANDARD-8 or SW-PRO-8 if another pad suits better.

Packed and shipped

We ship the kit direct with pads, display, chargers and antennas. No engineer visit and nothing to fit to the vehicle.

Calibrated for a year

Every kit includes a 1 year calibration. After that, we offer calibration services to keep your pads in date.
